PRODUCT DESCRIPTION
KY125T-3
The KIYOKI KY125T-3 combines retro styling with a 125cc, single-cylinder, four-stroke air-cooled engine and automatic CVT transmission. The catalog configuration includes electric and kick starting, front and rear disc brakes, an LCD dashboard and LED lighting. A 740 mm seat height, 1280 mm wheelbase and 6.8 L fuel tank define this model’s listed configuration.
When comparing this model with other scooters in the range, review its dimensions and tyre specifications in the table below. Send your destination market, quantity, preferred colors and branding needs for a quotation. Keyless operation is optional, and final equipment, documents and packing arrangements should be confirmed before ordering.
PERFORMANCE
Engine and Braking
- 125cc, single-cylinder, four-stroke air-cooled engine with automatic CVT transmission, based on the supplied catalog.
- Carburetor fuel system with electric and kick starting.
- Front and rear disc brakes are listed in the catalog configuration.
Equipment and Configuration
- An LCD dashboard and LED lighting are included in the listed equipment.
- A 740 mm seat height and 6.8 L fuel tank are specified for this model.
- Keyless operation is optional and colors can be customized. Confirm the final configuration and destination-market requirements before ordering.
Engine and Equipment
| Engine | 125cc, single-cylinder, 4-stroke, air-cooled |
| Bore × Stroke | 52 × 58.9 mm |
| Power / Horsepower | 5.2 kW / 7 HP |
| Compression Ratio | 9.2:1 |
| Transmission | CVT |
| Fuel System | Carburetor |
| Starting System | Electric / kick |
| Keyless System | Optional |
| Dashboard | LCD |
| Headlight | LED |
| Colors | Customizable |
Dimensions and Chassis
| Dimensions (L × W × H) | 1890 × 725 × 1105 mm |
| Brakes (Front / Rear) | Disc / disc |
| Tyres (Front / Rear) | 90/90-12 / 3.50-10 |
| Seat Height | 740 mm |
| Ground Clearance | 140 mm |
| Wheelbase | 1280 mm |
| Net Weight | 110 kg |
| Maximum Speed | 85 km/h |
| Fuel Tank Capacity | 6.8 L |
Tell us your target market, preferred configuration and estimated quantity. Discuss this model with our team.
Product Video

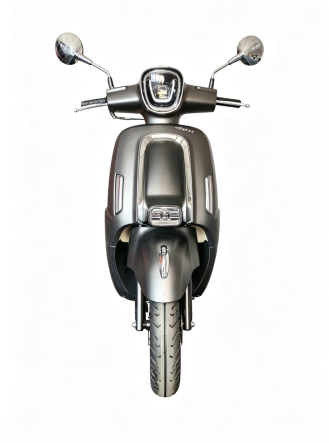

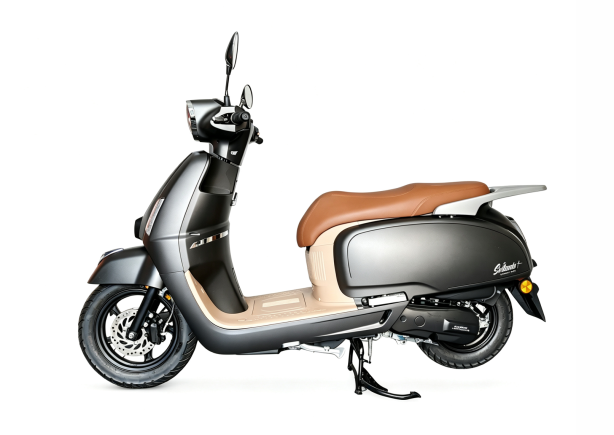

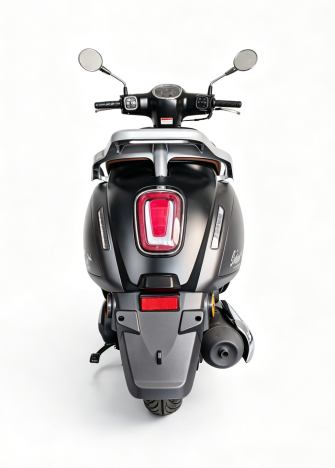

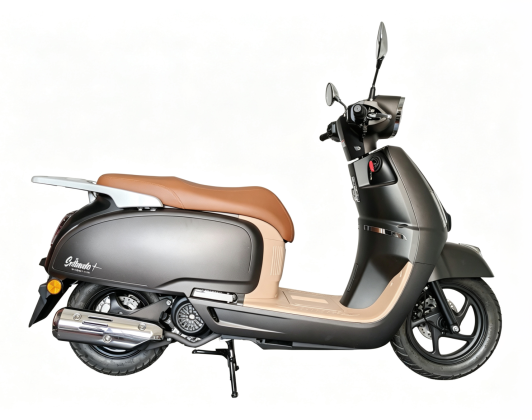

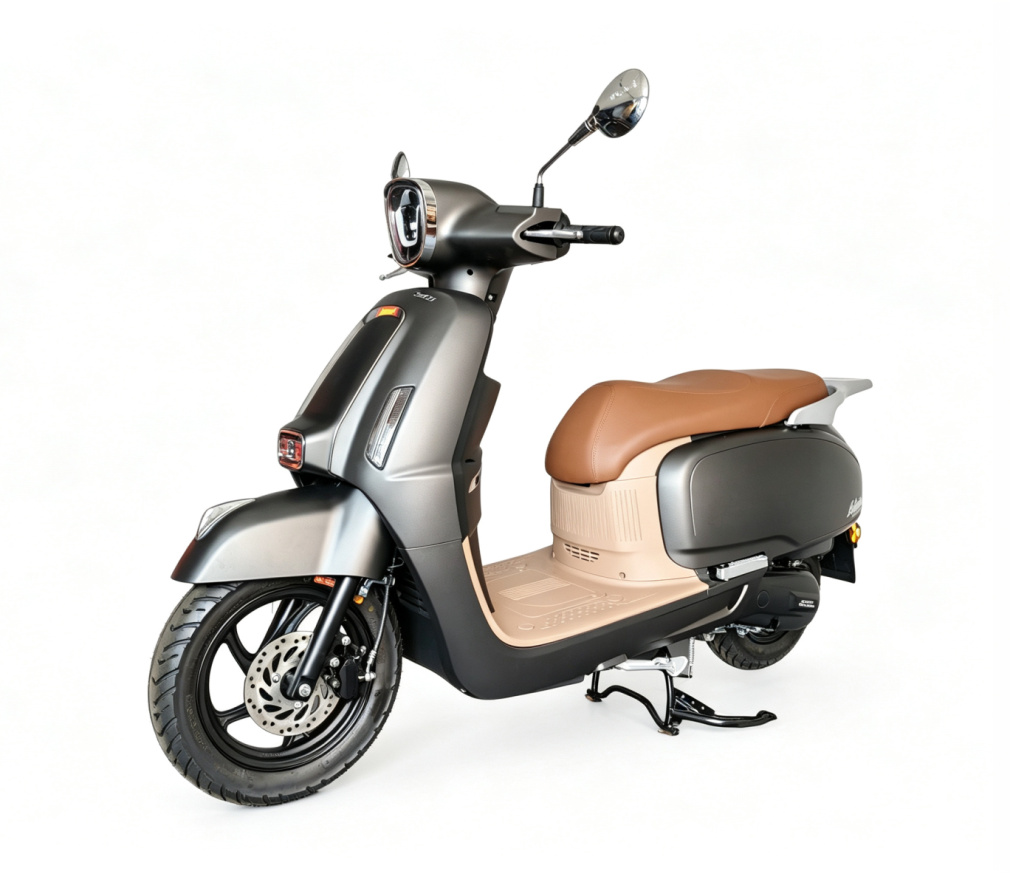

KY125T-3 — Product Photo Overview
