PRODUCT DESCRIPTION
KY125-4

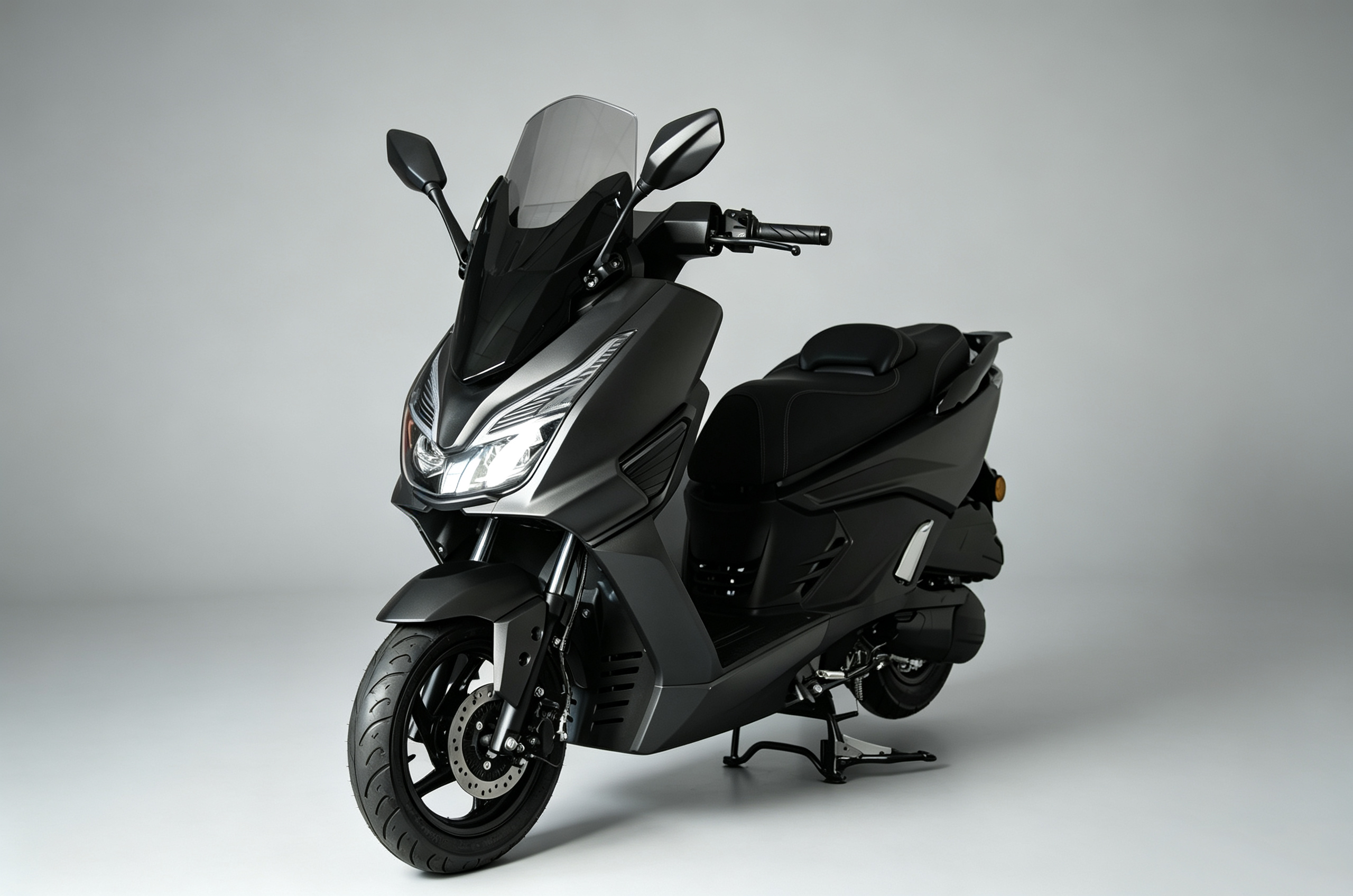

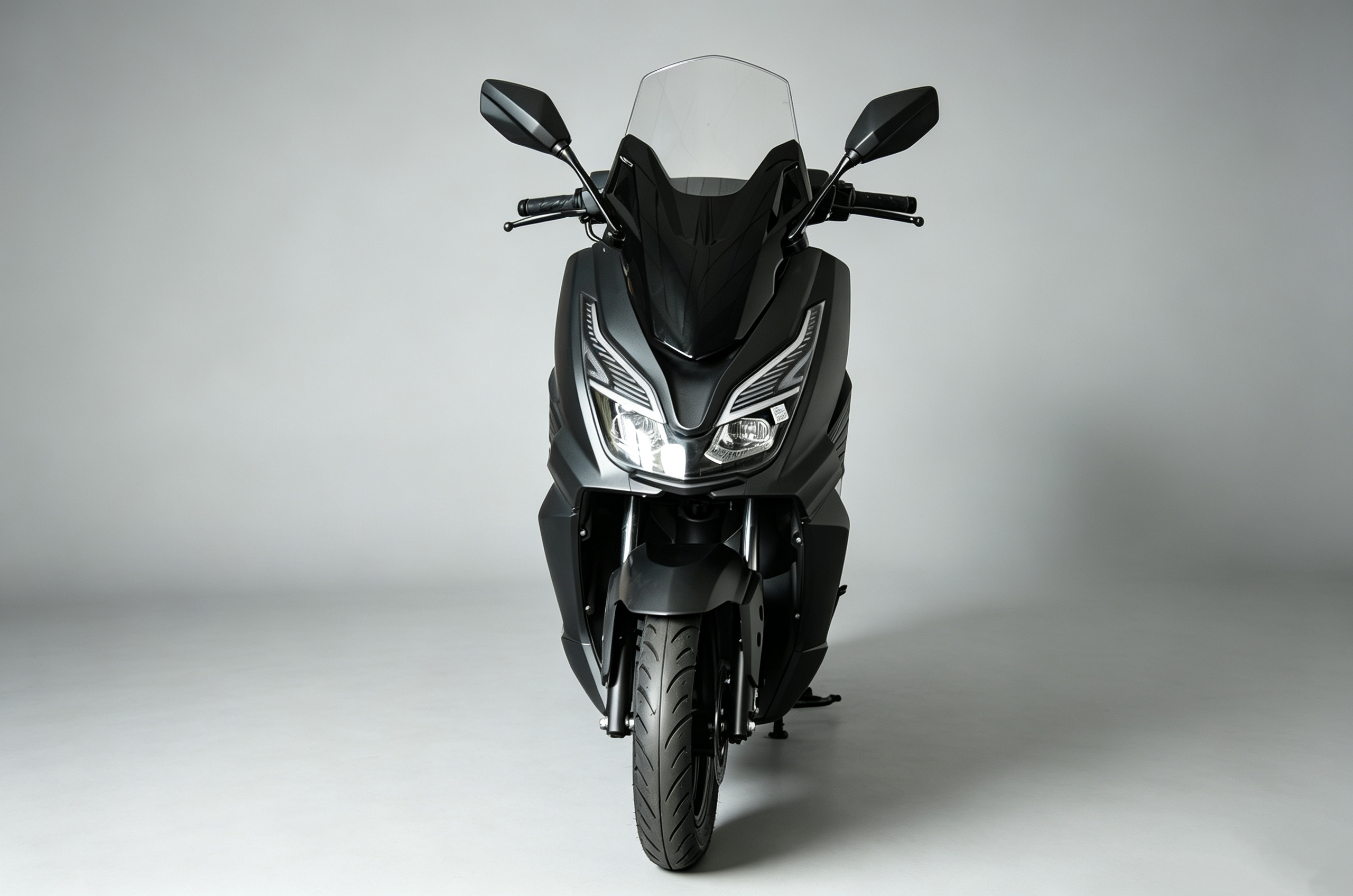

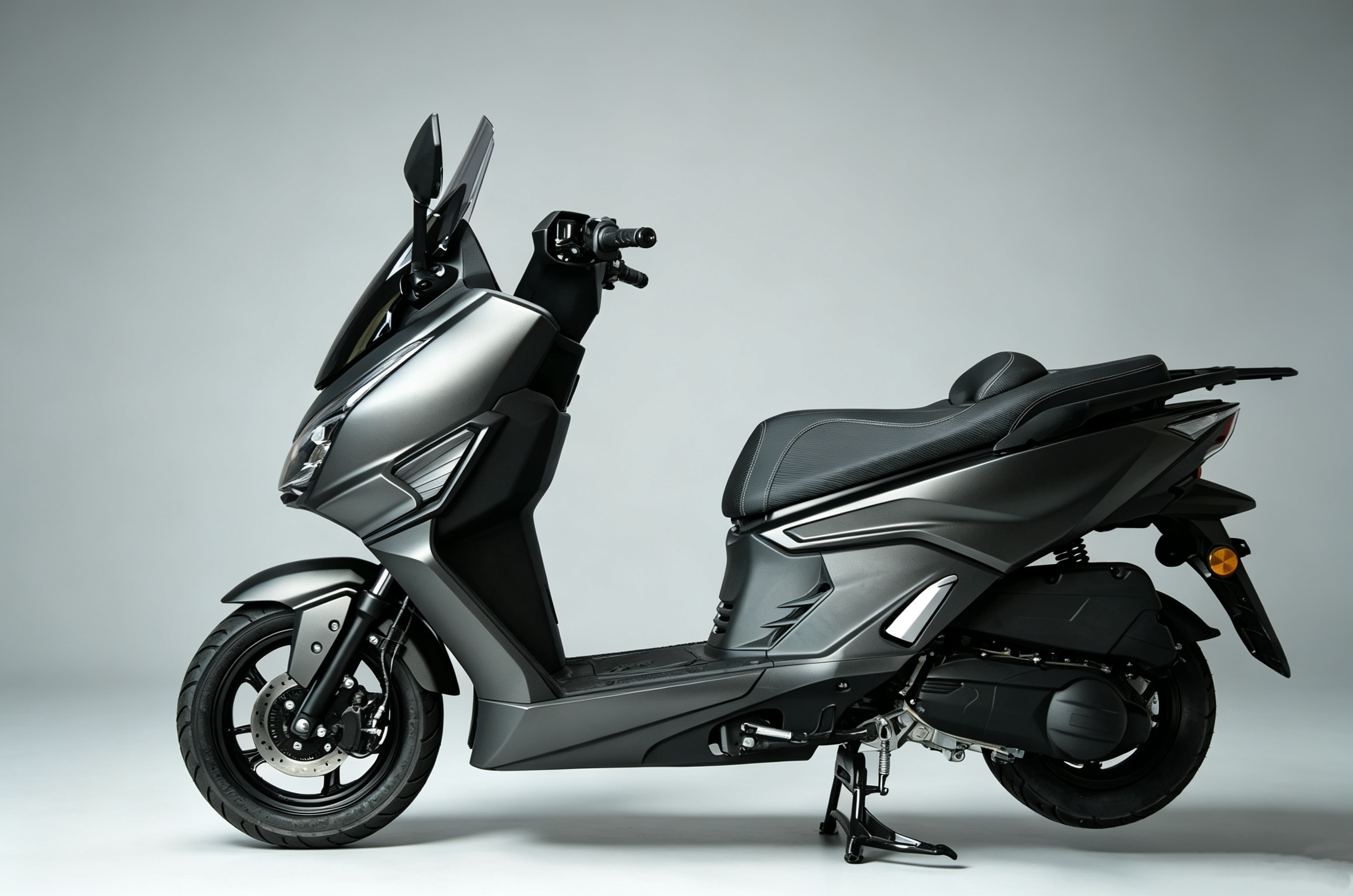

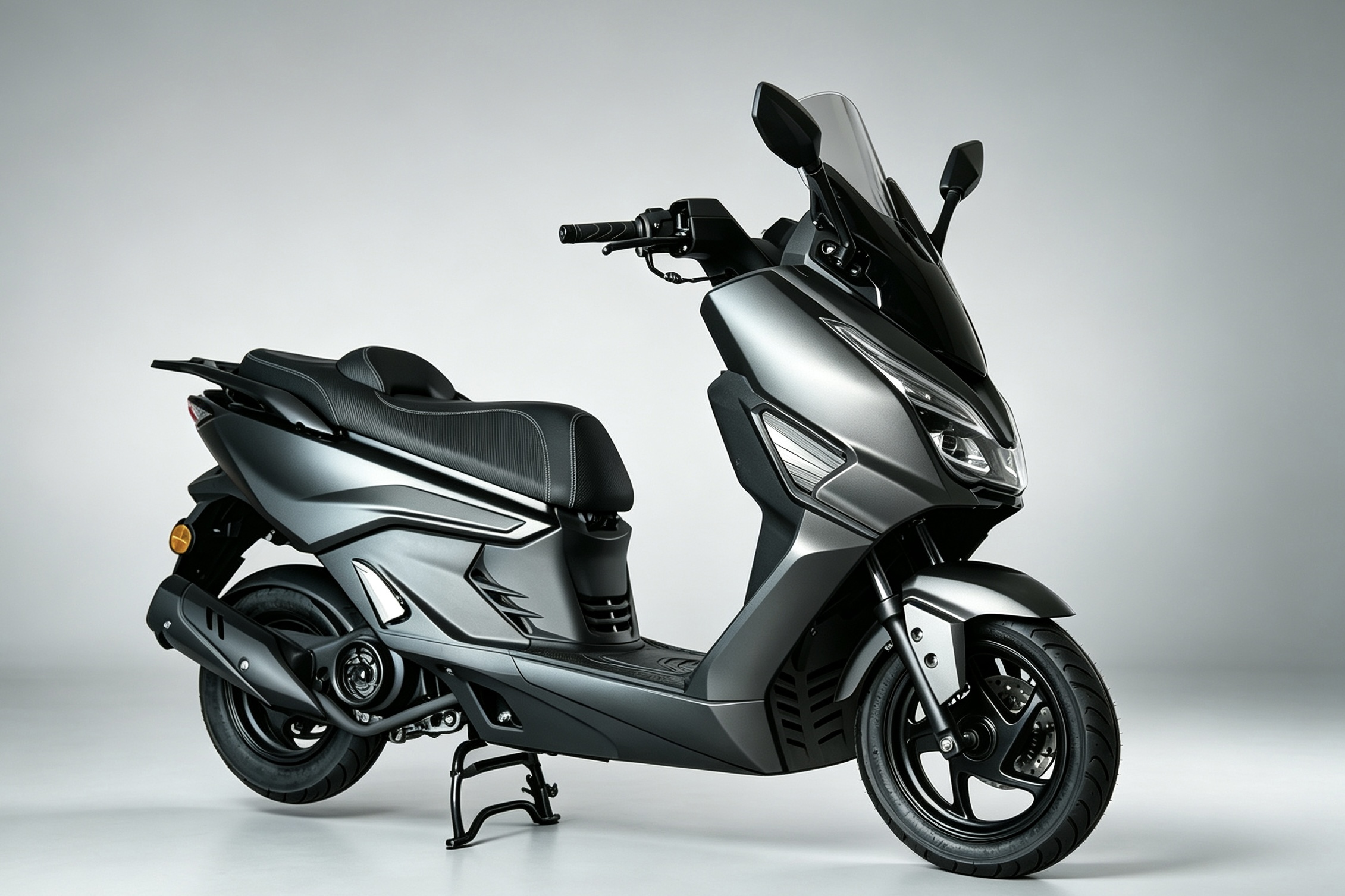

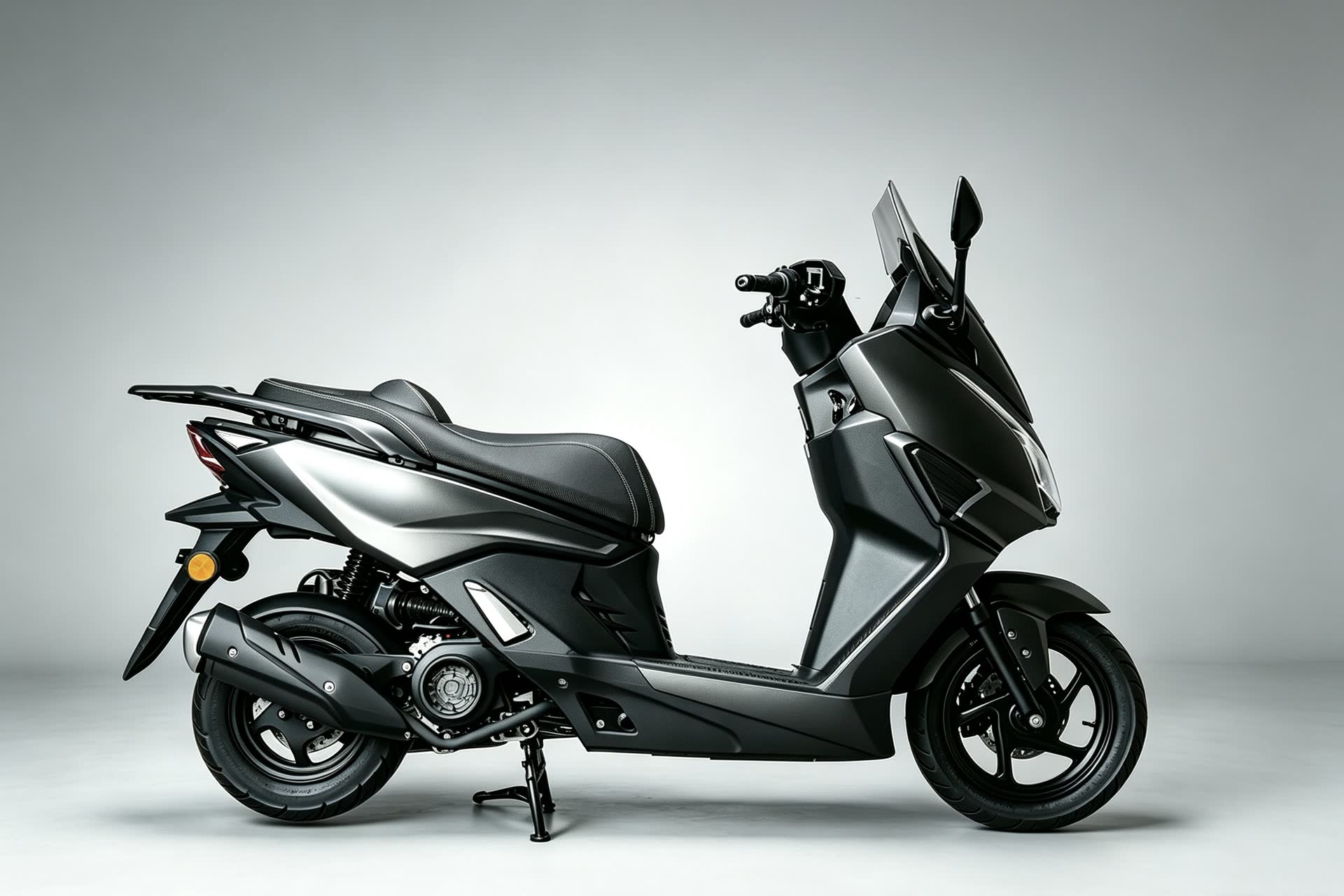

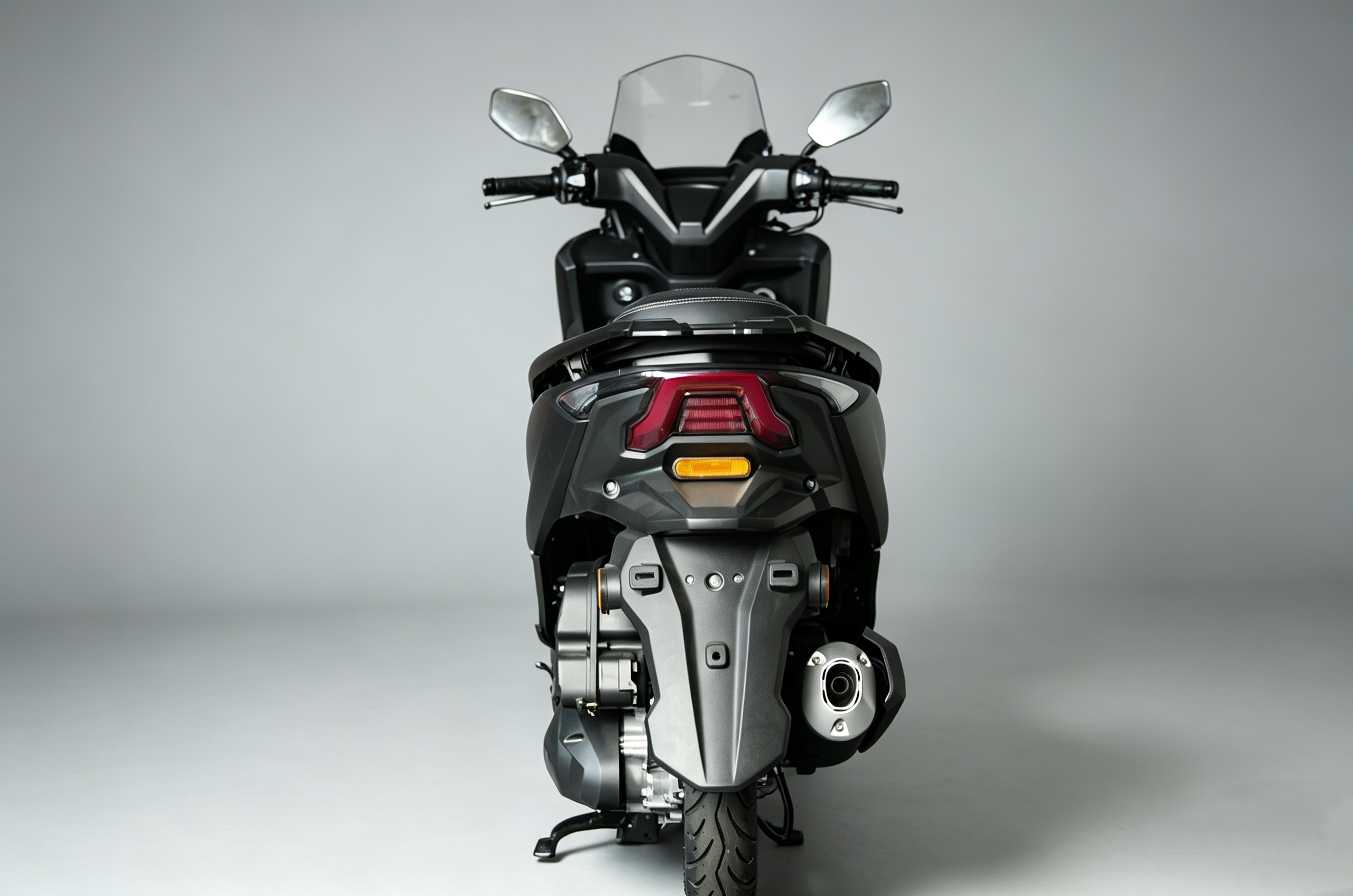

The KIYOKI KY125-4 is a sport-style gasoline scooter with a 174cc, single-cylinder, four-stroke water-cooled engine and electric starting. The supplied specification lists 13.6 kW at 8500 r/min, 17.2 N·m at 6500 r/min, a 780 mm seat height and 13 L of under-seat storage. Its 6.5 L fuel tank and front windscreen complete the model’s touring-style layout.
When enquiring about KY125-4, specify your destination market, quantity, preferred colors and branding requirements. Confirm final brake equipment, available documentation, packaging and supply terms before ordering. The engine displacement is 174cc; the “125” in the model name should not be used as a displacement specification.
PERFORMANCE
Engine and Chassis

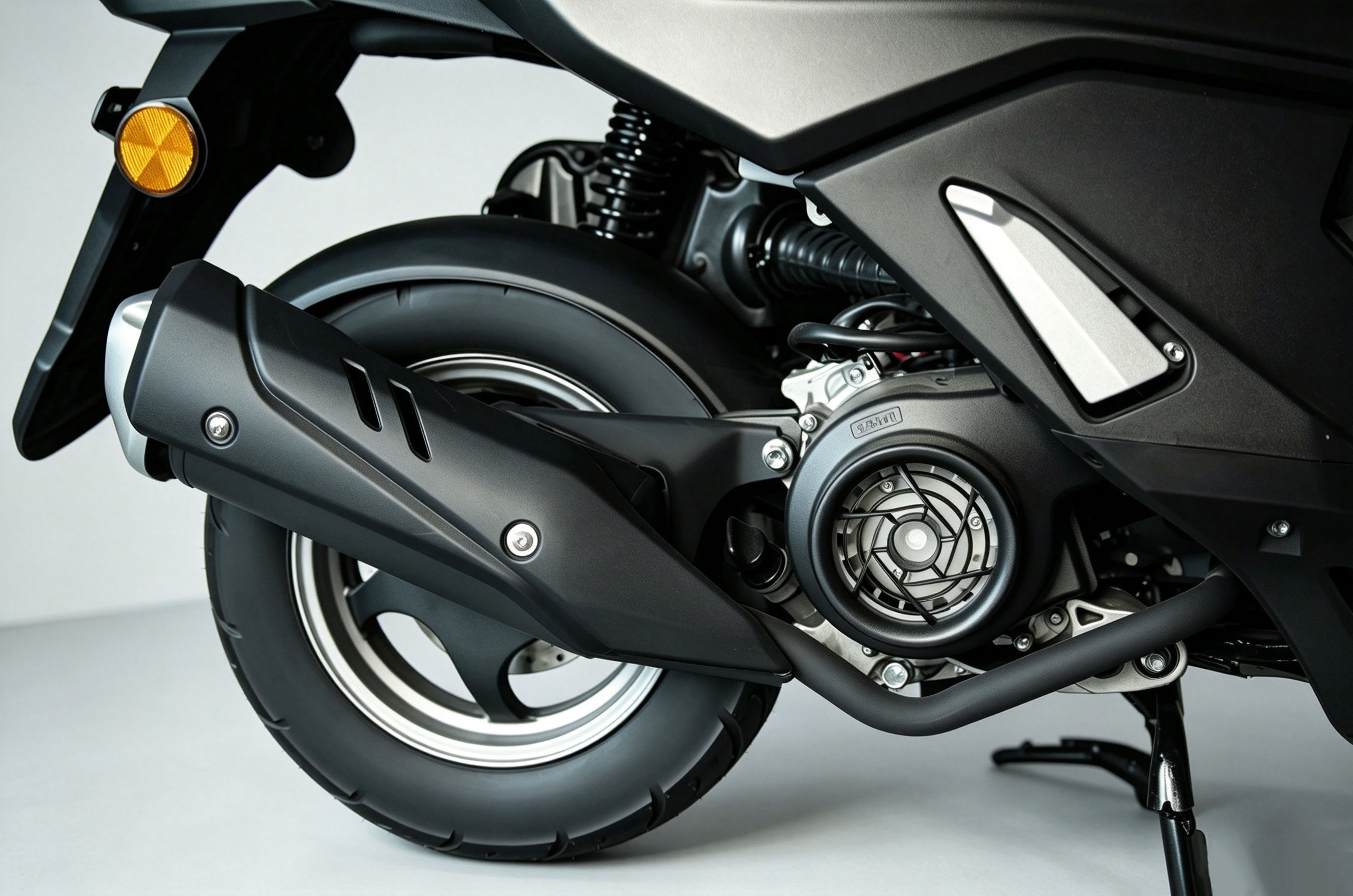

- 174cc, single-cylinder, four-stroke water-cooled engine. The supplied data sheet lists 13.6 kW at 8500 r/min and 17.2 N·m at 6500 r/min.
- Electric starting and CDI ignition are included in the listed configuration.
- A front disc brake and 120/70-12 tyres for both wheels are listed in the product specifications.
Equipment and Practical Details

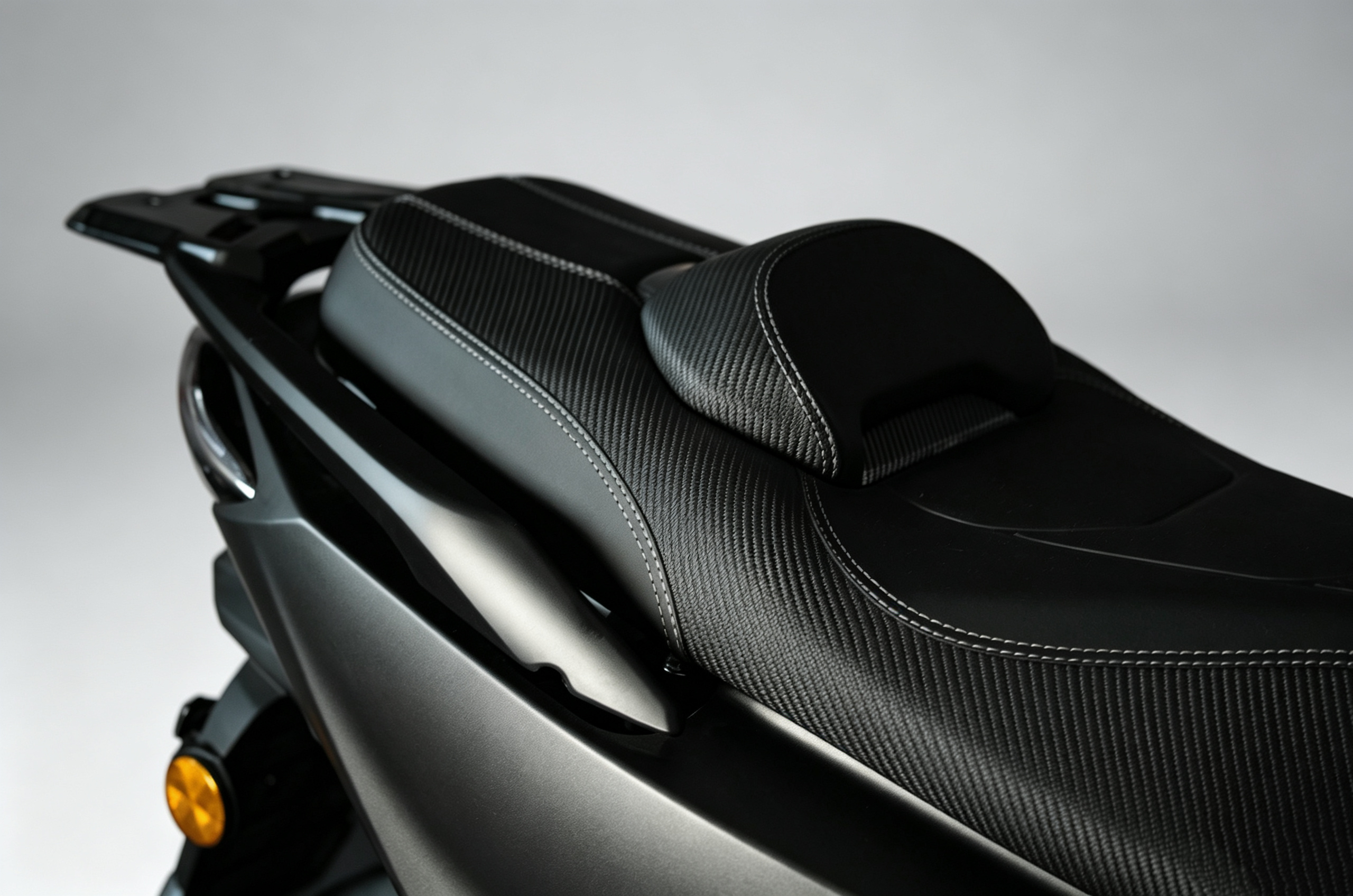

- A 780 mm seat height and 1353 mm wheelbase are specified for this model.
- The listed fuel tank capacity is 6.5 L, with 13 L of under-seat storage.

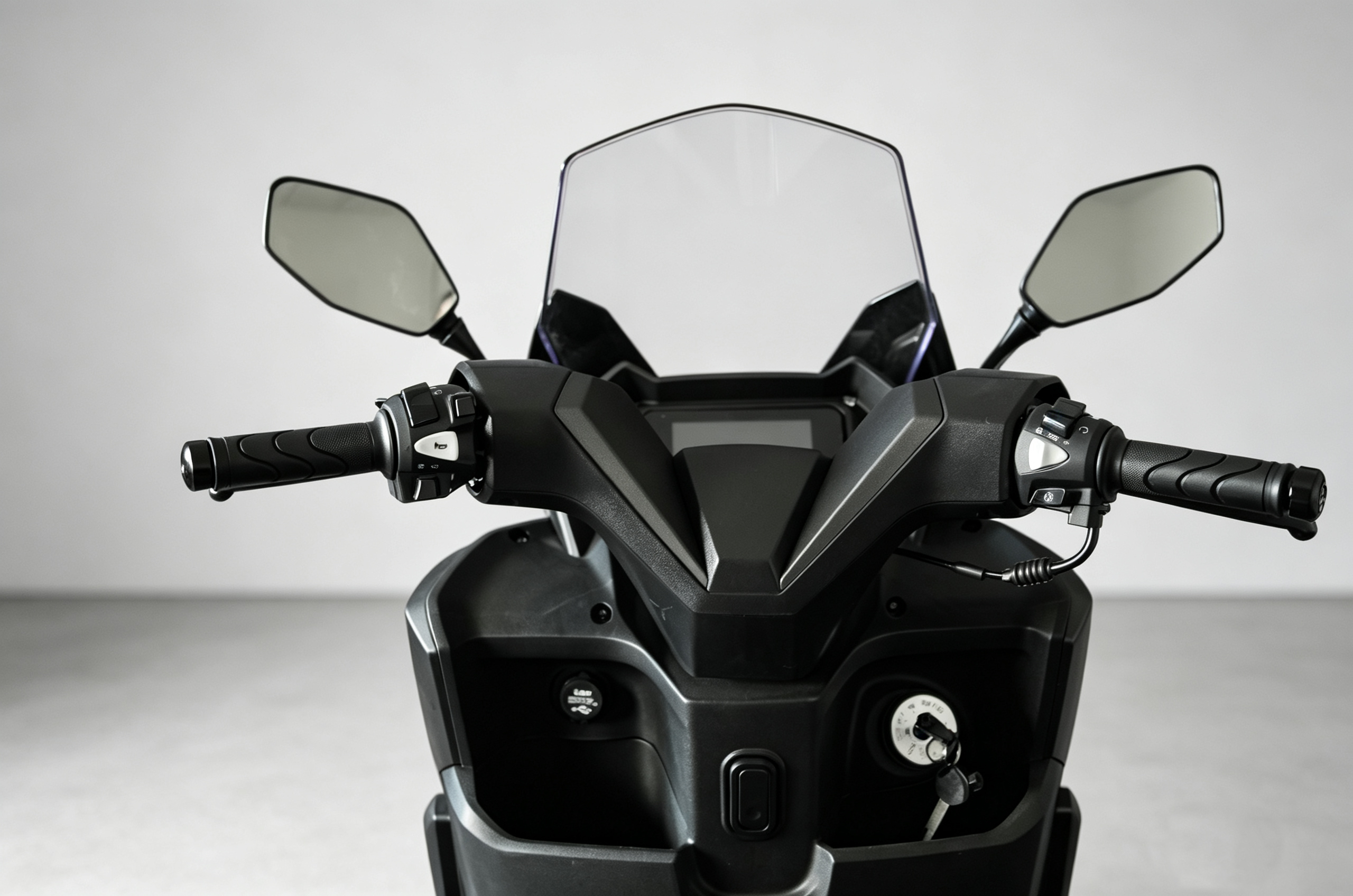

- Sport-style bodywork and a front windscreen. Confirm equipment, color availability and branding requirements with our team.
Engine and Performance
| Engine Type | Single-cylinder, 4-stroke, water-cooled |
| Displacement | 174 cc |
| Bore × Stroke | 61 × 59.6 mm |
| Maximum Power | 13.6 kW / 8500 r/min |
| Maximum Torque | 17.2 N·m / 6500 r/min |
| Ignition System | CDI |
| Starting System | Electric start |
| Maximum Speed | ≤105 km/h |
Dimensions and Chassis
| Dimensions (L × W × H) | 1960 × 715 × 1215 mm |
| Wheelbase | 1353 mm |
| Seat Height | 780 mm |
| Minimum Ground Clearance | 120 mm |
| Kerb Mass | 125 kg |
| Fuel Tank Capacity | 6.5 L |
| Front Tyre | 120/70-12 |
| Rear Tyre | 120/70-12 |
| Front Brake | Disc brake |
| Rear Brake | Drum brake (ABS) |
| Under-seat Storage | 13 L |
| Optional Colors | Red / Black / White / Blue |
Specifications shown are based on the supplied product data sheet. Please confirm the final equipment, color availability and destination-market requirements with our team before ordering. Request a Quote.
